Drainage Pump VehicleHandy Mobile Pump Package

Same Category :
Handy Mobile Pump Package
Drainage Pump with Vehicle

1. Compact & Easy Handling

The package weight with all components is just 915kg, and even the total weight with Diesel Generator is less than 2000kg*1. The most notable feature is the weight of pump itself – as light as 32kg (excluding suction nozzle & cable), and can be easily handled and moved manually*2. Therefore, it can be mobilized in a narrow space. *1 : The weight may exceed 2000kg for optional case. Diesel Generator, package installation on vehicle, equipment weight, etc. shall be in accordance with the local or the country’s rules and regulations.
*2 : Pump installation work shall be done by 2 persons for each pump.

2. Complete Drainage

The newly developed suction nozzle is designed for continuous drainage until the water level reaches 8cm in depth*3. With this drained shallow water level, passage of persons and vehicles becomes possible.*3 : The initial suction depth must be 30cm or higher to enable the pump operation. And 8cm depth can be attained at flat concrete site condition.

3. Wide Application

By directly connecting two sets of standard pump each with 10m head, total 20m head can be obtained to cope with higher head requirement.

Youtube

Application

Flood Control

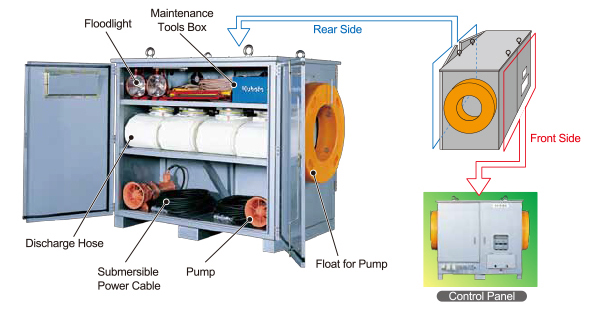

COMPONENTS

PUMP SPECIFICATION

		5m³/min model	10m³/min model
Pump specification	Quantity	1 pc.	2 pcs
	Bore	φ200mm
	Capacity	5m³/min (at 10 m total head.)
	Total head	10m
	Rated output	12kW
	Weight	Approx. 32 kg (excluding suction nozzle and cable)
	Start method	Inverter start
	Drainage distance	50m
	Remarks	40 m cable/set
Discharge hose	Quantity	φ200 x 25 m x 2 pcs	φ200 x 25 m x 4 pcs
	Max. Pressure	0.2MPa
	Hose joint	Clamp coupling
	Weight	Approx. 30 kg/pc.
Float	Quantity installed	1 pc.	2 pcs
Float	Material	Outer layer: Engineering plastics, inner layer: Foamed polyurethane
Floodlights	Quantity installed	1 pc.	2 pcs
	Lamps	500 W/AC 220 V/Halogen lamp
	Remarks	With 10 m cable and portable tripod stands.
Control panel	Type	Outdoor closed and free-standing type (All-in-one stored package type)
	Voltage	AC 220 V, 60 Hz, 3-phase 3-wire
	Remarks	Equipped with Harmonic Distortion Filter
Package	Dimensions	W1200 ×D1200 ×H1400	W1600 ×D1200 ×H1500
	Material	Made of steel sheets
	Accessories	All-in-one strainer-suction nozzle x 1 set Float push-out bar x 1 pc. Drain hose fixing peg x 2 pcs Hammer (1.5 kg) x 1 pc. Grounding electrode bar x 1 pc. Mooring ropes 20 m x 2 pcs Power supply cable 5 m x 1 pc. Hose repair kit Disassemble tool kit x 1 set	All-in-one strainer-suction nozzle x 2 sets Float push-out bar x 1 pc. Drain hose fixing peg x 4 pcs Hammer (1.5 kg) x 1 pc. Grounding electrode bar x 1 pc. Mooring ropes 20 m x 4 pcs Power supply cable 5 m x 1 pc. Hose repair kit Disassemble tool kit x 1 set
Total weight		Approx. 630 kg	Approx. 915 kg
